SI Diagrams

The diagrams below show how the base units relate to the derived units of the international system (SI).

Note: the solid arrows indicate multiplication and the broken line (dotted line) arrows indicate division.

There are two versions as follows:

  • Simplified version
  • Full version

Simplified diagram

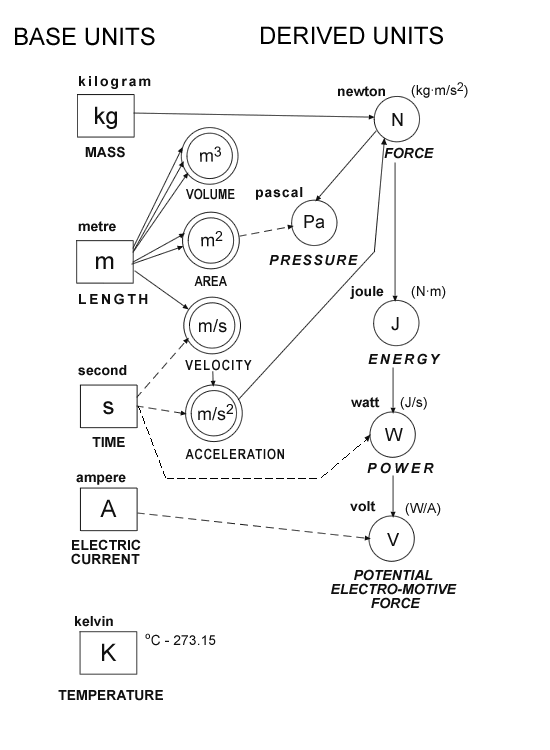

A simplified version showing the units most commonly occurring in everyday life.
Simplified SI diagram

Full system

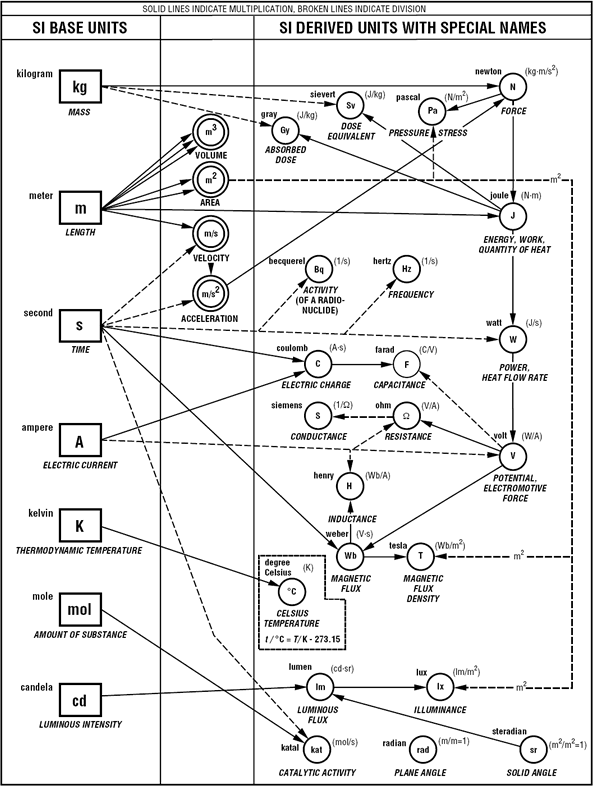

The the full system reproduced from the NIST web site.

Full SI diagram
